The Whydah's World

Welcome

This is the planning and teaching dashboard for the LEAP4Ed Summer 2026 middle-school unit on the Whydah Gally - a slave ship captured by pirate Sam Bellamy in 1717, lost in a storm off Wellfleet 10 weeks later, and rediscovered by Barry Clifford in 1984. The first authenticated Golden Age pirate wreck.

The unit runs five weeks (July 6 - August 6, 2026) at Collins Middle School, Salem. Two sections of about 20 students each, ages 11-13, 90 minutes per session. Every student keeps a Voyage Journal across 16 instructional sessions and a field trip, then builds a final project in a format they pick from a 13-option menu, presented at a public Showcase on August 6.

The unit''s spine is cartography: students learn to read and make maps before they get deep into the history. From there it opens out into the Atlantic trade Bellamy sailed through, the moral complexity of why people chose piracy in the first place, and the modern chokepoints (Suez, Malacca, Panama) where the same logic plays out today.

Use the tabs above to navigate. Plan shows the unit at a glance and what students make each session. Story holds the history. Reference holds the sources, the glossary, and how we rate them green / yellow / red for confidence.

COURSE-ESSENTIALDriving question

"Why would a person choose piracy in 1717 — and how would they want you to tell their story?"

ESSENTIALFour supporting questions (one per week)

1. How do people use maps and navigation to exercise power — in 1717 and today?
2. What do Atlantic trade routes tell us about who benefits and who suffers from global commerce, then and now?
3. How does geography shape the choices people can make — from 18th-century piracy to modern chokepoints like Suez, Malacca, and Panama?
4. Whose stories get mapped, and whose get buried — across time?

ESSENTIALThree threads running through the whole unit

1. Cartography and navigation. Maps are the tool. We learn to read and make them first. The Whydah story holds together on cartography too: Cyprian Southack's 1717 salvage map is what Barry Clifford used in 1984 to find the wreck.
2. The Whydah's Atlantic world. The ship's journey carries everything else: trade, slavery, piracy, the wreck, the recovery.
3. Modern Oceans. Suez, Bab-el-Mandeb, Panama, Malacca, container shipping, the Houthi attacks. Same chokepoint logic as 1717, different water.
4. Running through all three: a social justice lens - whose stories get told, whose get buried. Not a separate pillar; the constant theme across cartography, the Atlantic world, and modern oceans.

How we're holding the moral complexity

The Whydah's crew were escaping real brutality and they stole for a living. The Ship's Articles were democratic and they were a mutiny. A member of Parliament funded the ship as a slaver. We want students to understand these choices without glorifying or condemning them — no flattening either direction.

ESSENTIALVoyage Journal + final project

Students keep a Voyage Journal across the whole unit — one deliverable per session, 16+ artifacts accumulated by Week 5 (maps, writing, analysis cards, sketches, character notes). The final project is a new piece built from the Journal: students pick a perspective and a format (13 options), and every final project cites at least 3–4 Journal entries as source material.

See the Voyage Journal tab for session-by-session deliverables and the full final project format menu.

ESSENTIALField trips

• Field Trip 1 (Week 2, Thursday July 16): Two-section rotation. Section A morning at Real Pirates Salem (Whydah scavenger hunt); Section B morning at Salem Maritime NHS (the Friendship replica East Indiaman + Derby Wharf + Custom House). Swap at lunch. Walking distance between sites. Curator-led at Real Pirates if we can swing it through Frank Cutietta.
• Field Trip 2: TBD

COURSE-ESSENTIALHow the Journal and the final project work together

The Voyage Journal is a running binder — physical or digital, student choice — that grows one entry per session. Every entry is small and finishable in a single class period: a map, a short reflection, a T-chart, an analysis card. The goal is to build up raw material across the whole unit.

The final project is a new piece in a format the student picks from the menu below, built from the Journal. Every final project has to cite at least 3–4 Journal entries as source material. The Journal is the evidence of process; the final project is the synthesis they present.

At the Showcase, final projects get presented; Journals lay open on tables for visitors to flip through.

What we can do with this in class

Four ships in one storm. Two survived. Williams was at Block Island visiting family, so his sloop got out. The Anne Galley got separated and survived. The Mary Anne wrecked too but in shallower water, so all 10 aboard walked off. Bellamy's Whydah took the worst of the wind on a lee shore at Wellfleet, with John Julian (16) on the wheel and no way to know their east-west position. Two of 146 survived. Use this in S13 to teach the wreck as four parallel outcomes, not one event.

Thomas Davis on the wreck (Trials, p. 318)

"The Ship being at an Anchor, they cut their Cables and ran a shoar, in a quarter of an hour after the Ship struck, the Main-mast was carried by the board, and in the Morning She was beat to pieces. About Sixteen Prisoners drown'd, Crumpstey Mast of the Pink being one, and One hundred and forty-four in all."

Two things in this quote rewrite the popular story. (1) The Whydah was anchored when the storm hit — Bellamy's crew deliberately cut their own cables to try to beach her, rather than being driven uncontrolled onto the bar. (2) Captain Andrew Crumpstey of the Mary Anne was aboard the Whydah and drowned — primary confirmation, ending earlier ambiguity about his fate.

Davis was Welsh, from Carmarthenshire, age 22 at trial. Captured December 1716 from the merchant ship St. Michael by Bellamy's Sultana and Louis Lebous's Postillion jointly; held at Blanco until January 1717. Acquitted at trial as a forced man. In custody by 29 April 1717 — three days after the wreck.

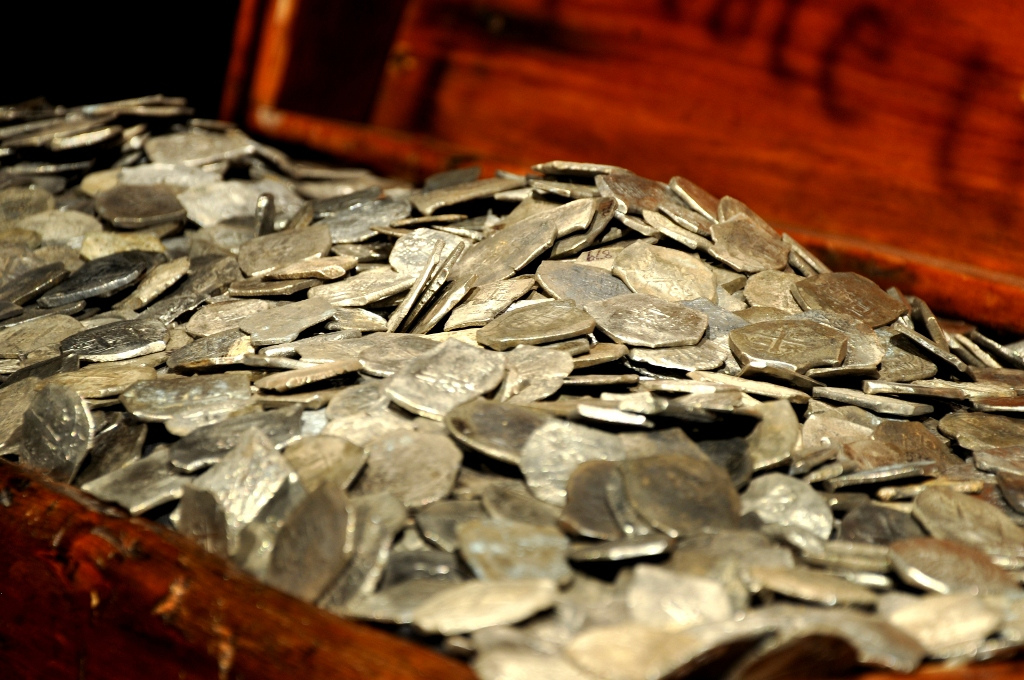

Peter Cornelius Hoof on the treasure (Trials, p. 319)

"The money taken in the Whido, which was reported to Amount to 20000 or 30000 Pounds, was counted over in the Cabin, and put up in bags, Fifty pounds to every Man's share, there being 180 Men on Board… Their Money was kept in Chests between Decks without any guard, but none was to take any without the Quarter Masters leave." In plain English: The money on the Whydah was about £20,000-30,000 pounds sterling - a fortune. They counted it in the captain's cabin and put it in bags. Every man on board got £50 - fair shares, no matter your rank. There were 180 men aboard at the count. The money sat in chests between decks with no guard, but you couldn't grab any without the Quartermaster's permission.

• £20,000–30,000 sterling — Hoof's contemporaneous figure. More grounded than the breathless weight numbers in popular accounts.
• £50 per man, even share — primary-source confirmation of Bellamy's flat distribution. The pirate-democracy claim has at least this much documentary support.
• 180 men aboard at division vs. 146 at the wreck — the gap is prize-crew attrition, men placed on captured vessels in the weeks before the storm.
• Treasure stored in chests between decks, unguarded, but governed by the Quartermaster's authority — not by force.

James Dunavan on the Mary Anne pirates and the Common Prayer Book (Trials)

"…the Pinks Company could not see the Shoar till they were among the Breakers… the Prisoners at the Bar or some of them… Cryed out saying, For God's sake let us go down into the Hould & Die together. And the whole pinks Company tarry'd on Board her all that Night: And in their Distress the Prisoners ask'd the Deponent to Read to them the Common-Prayer Book…"

Two notable additions. (1) The Mary Anne pirates — facing storm, shore, and certain capture — asked to die in the hold together, then asked their captives to read them Anglican prayer through the night. Useful for any session on what pirates actually believed about death and dying. (2) The deposition lists three vessels visible before grounding ("the Pirate Ship, Snow and Sloop") — Bellamy's fleet at the moment of the storm was at least four vessels (Whydah + Anne Galley snow + Mary Anne pink + Fisher sloop), corroborating the four-ships table above.

A 19-stop, 3D globe flythrough of the Bellamy story, from his birthplace in Devon to the modern Salem museum. Each stop shows a photo and a "why this matters" caption while the camera does a slow 180-degree pan around the location. Hit play to start, or jump to any stop via the "All stops" button.

If the embedded view feels cramped, open in a new tab for the full-screen experience.

Color coding in the flythrough: green = documented site  |  red = wreck site (approximate, restricted)  |  orange route line traces the Whydah's known voyage 1715-1717.

The same Massachusetts coast Bellamy died on, watched live in 2026 via masswebcams.com - a directory of 200+ public webcams across the state. Useful as a "modern bridge" tool: students can compare Southack's 1717 chart to right-now imagery of the same beaches.

Cahoon Hollow Beach - Wellfleet outer beach, live

The closest reliable live video to the Whydah wreck site. Cahoon Hollow is the public beach immediately north of Marconi Beach (where the Whydah grounded in 1717) - same outer-Cape sandbar geography, same nor'easter exposure. The cam is a 24/7 YouTube live stream from the Beachcomber bar/restaurant.

Pedagogical use: open during the Session 13 wreck reconstruction. Students see the actual sandbar geography where 144 men drowned - the same outer-beach coastline Southack mapped in 1717, three centuries of erosion later.

Provincetown Harbor - Southack's arrival, live

Provincetown is where Cyprian Southack arrived by sea from Boston in May 1717 with his royal commission to salvage the Whydah. He hired a whaleboat here rather than sail around the dangerous outer Cape. This live cam looks out over the harbor he sailed into.

Cape Cod Canal - the modern bridge

Two live cams on the Cape Cod Canal - the modern engineered shortcut across the base of Cape Cod that opened in 1914. Useful counterpoint to Jeremiah's Gutter, the 1.5-mile tidal cut Southack used in 1717 that has since been buried under Route 6's rotary. Same idea, separated by 200 years and the engineering of the Industrial Age.

North Shore - the students' own coast

Salem and the towns around it sit on the same outer-coast Atlantic Bellamy's crew rounded en route to Damariscove, Maine. These are live cams along that 30-mile arc north of Salem - water our students see from their windows.

Marconi Beach (USGS scientific cam) - the actual wreck site

Two USGS Coastal and Marine Geology Program snapshot cameras at Cape Cod National Seashore station caco-05 - the public scientific cameras closest to the Whydah wreck. These update on a slow schedule and are dark/uninformative outside daylight hours; the live YouTube cams above are usually more visually useful.

Source: masswebcams.com via the USGS Coastal Change Hazards Program.

More cams (link-only)

Other Massachusetts coast cams that aren't iframe-friendly:

• Marconi Beach, Wellfleet - the USGS cams above on their source page.
• Cahoon Hollow Beach (Beachcomber Cam) - just north of the wreck site, same outer-beach coastline.
• Wellfleet Oyster Cove (inner harbor) - the bay side, where Southack would have hugged the coast in his whaleboat.

Other Whydah-relevant locations

• Provincetown (MacMillan Pier, Harbor Hotel cams) - where Southack arrived by sea, May 1717.
• Cape Cod Canal - modern engineering on the same coast. Compare to Jeremiah's Gutter, the 1717 tidal canal that vanished.
• Boston Harbor - 25 minutes by water from the Charlestown gallows site.

Pedagogical use: open Marconi Beach during the Session 13 wreck reconstruction. Students see the actual sandbar where 144 men drowned, in real time. The shore Southack mapped in 1717 is still right there - just 270 years of erosion later.

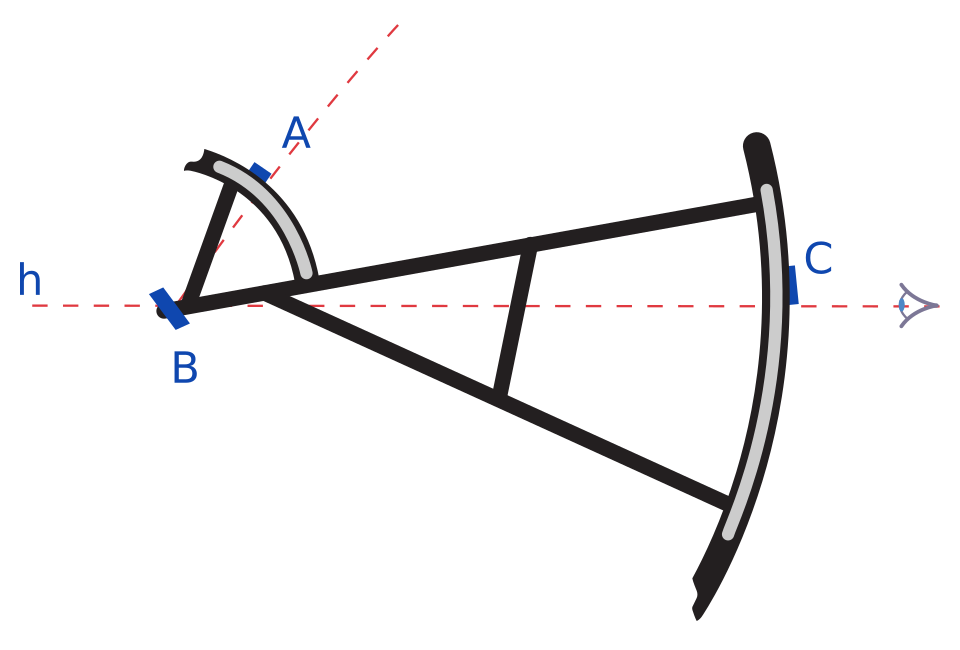

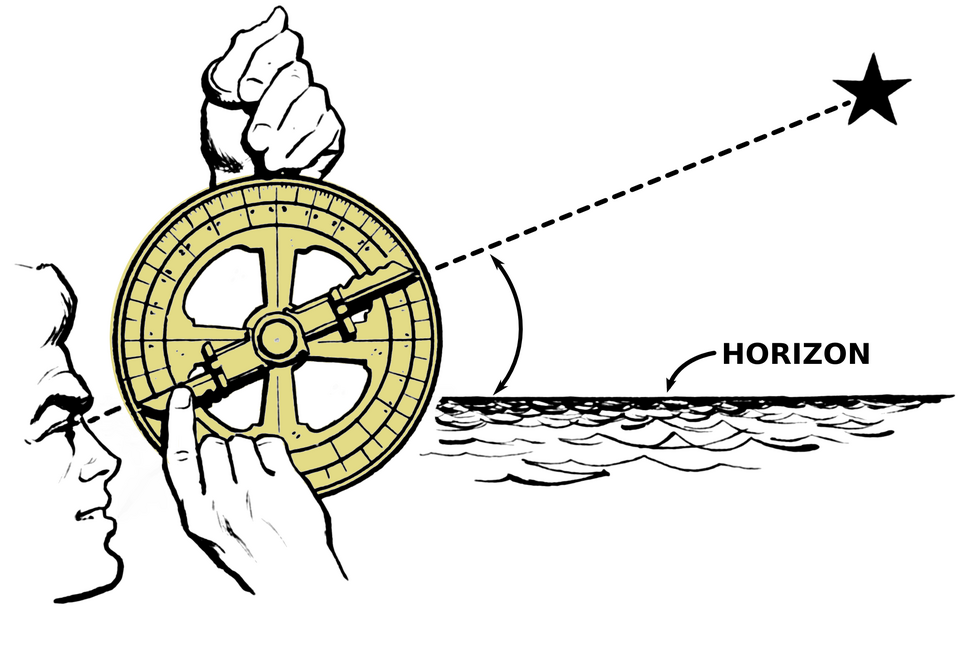

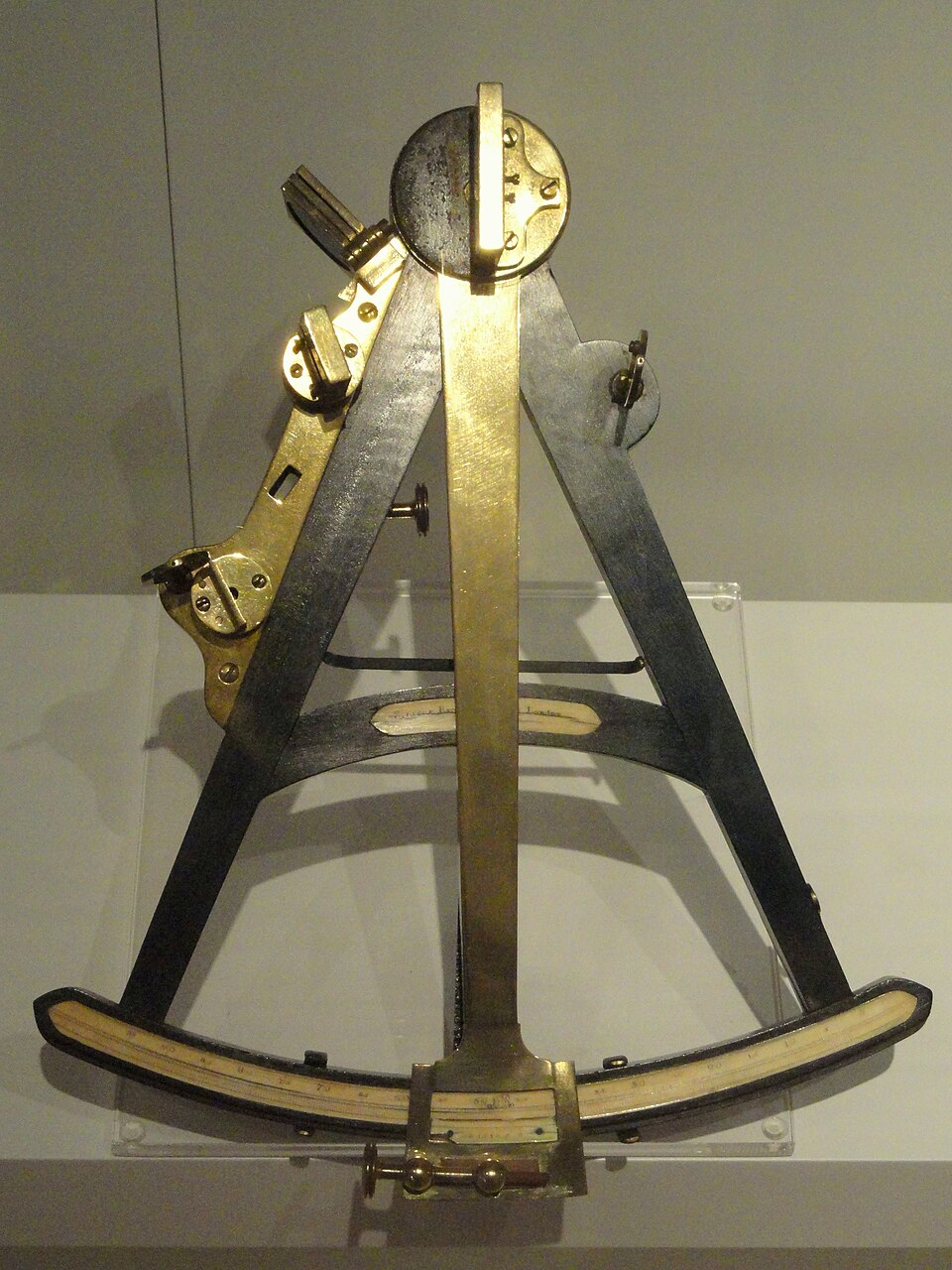

In 1717, sailors could reliably find their latitude (north-south position). They could NOT reliably find their longitude (east-west position). The best method available was dead reckoning, which accumulated error over days.

1707 Scilly Isles disaster: Royal Navy fleet misjudged longitude, wrecked on the Scillies, over 1,000 dead. Triggered the 1714 Longitude Act — Parliament offered £20,000 (millions today) for a solution.

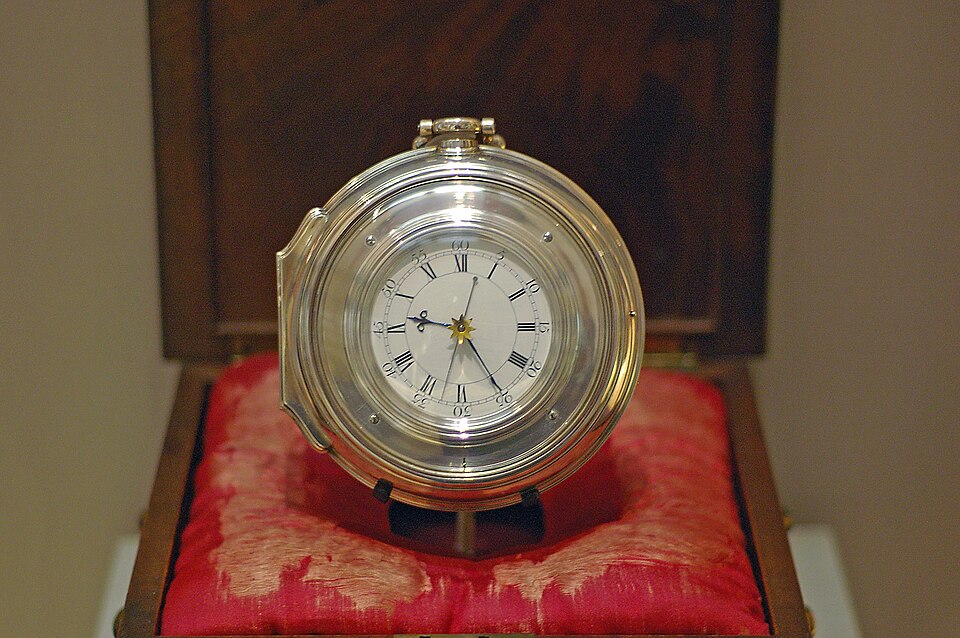

John Harrison began work on marine chronometers ~1730. His H4 proved itself in 1761, losing only ~5 seconds over an 81-day voyage. All of this is AFTER the Whydah.

S13 leans into this. The Whydah didn't wreck because the crew was bad. They wrecked because the tools to know your east-west position at night didn't exist yet.

Math hook for the cohort: the alternative to a chronometer was the lunar distance method — measure the angle between the Moon and a chosen star, then run multi-step trigonometric calculations to back out Greenwich time. The Science Museum London (Where in the World? The Mathematics of Navigation) shows how this worked. The almanac tables of predicted celestial positions were computed by hand — often by women and children working from home, called "computers." The word "computer" originally meant a person who computes. Useful S13 / S2-S3 detour: navigation as applied trigonometry, and the gendered/age history of who actually does mathematical labor.

Invented by Gerard Mercator in 1569 but NOT widely adopted for marine charts until the 18th century. By 1717, Mercator charts were becoming the working standard for ocean navigation.

The revolutionary feature: a "rhumb line" (a course where you hold the same compass heading the whole way) shows up as a straight line on a Mercator chart. On any other projection it would be a curve.

Practical effect for a 1717 navigator: draw a straight line from A to B on a Mercator chart, read the compass bearing off that line, hold that heading across the ocean.

Today: Google Maps uses Web Mercator. Same projection a 1717 sailor used. Same Greenland-is-huge distortion.

Moll was the most important London cartographer of the early 1700s. His 1719 world map was made to illustrate Daniel Defoe's Farther Adventures of Robinson Crusoe.

His social circle included actual pirates and privateers: William Dampier, Woodes Rogers, and William Hacke, who gave him firsthand information on Caribbean routes and Spanish treasure movements.

Moll's West Indies map has been described as "a guide to English piracy and privateering." His maps showed trade winds, compass variations, and "Remarkable Tracts" of voyages — essentially commercial intelligence.

In Session 3, this answers the question "who made this map, and why?" — a guy who drank with pirates and sold their route data for profit. Maps are arguments, not neutral records.

The whole Atlantic and beyond, live from MarineTraffic.com. Zoom out to see global shipping density. Zoom into chokepoints (Suez, Malacca, Red Sea, Panama) to watch traffic queue through.

Quick jumps: Salem Harbor · Wellfleet (wreck site, 41.891N 69.957W) · Suez · Malacca · Red Sea / Bab-el-Mandeb · Panama · Bellamy's Atlantic

The triangle trade's shape wasn't a "choice" by merchants — it was forced by physics.

• North Atlantic Gyre — giant clockwise ocean current system; the Gulf Stream is its northern limb
• Trade winds (easterlies, south of ~30°N) — carried ships Europe → Africa → Caribbean
• Westerlies (westerlies, north of ~30°N) — carried ships Caribbean → North America → Europe

The Whydah's final voyage fits this pattern: after the Caribbean, Bellamy was heading north up the American coast — riding the Gulf Stream toward the westerlies — when the nor'easter caught him off Cape Cod.

S5 move: open the wind map before plotting the trade triangle. "Why is it shaped like a triangle?" has a physical answer, not just an economic one.

Watch: The longitude problem and Harrison's clocks

Why this matters for us: the Whydah grounded at Wellfleet on the night of April 26, 1717, in a nor'easter, in the dark, on a lee shore. They could not verify their east-west position. A 16-year-old pilot (John Julian) was navigating with a backstaff. This video is the fastest way for a student to feel why Session 13 frames the wreck partly as a longitude-problem disaster.

Watch: Why all world maps are wrong (Vox, Johnny Harris)

Six minutes. Hits the Mercator-vs-Africa moment, the 1973 Gall-Peters controversy, and the trade-offs every projection makes. Show this in S2 or S3 alongside the Moll 1719 close-read.

thetruesize.com - drag any country anywhere on a Mercator map and watch it snap to its correct relative size. Drag Greenland down to the equator. Drag the U.S. up over Greenland. The viscerally illustrates the Mercator distortion.

map-projections.net - browse 250+ projections side-by-side with their Tissot indicatrices and metric tables.

Jason Davies' map projection transitions - smooth animated morphing between projections, by D3 cartographer Jason Davies.

How this maps onto the unit

• S2 (What is a map?) - introduce projection as a translation choice. Use thetruesize.com hands-on.
• S3 (Reading the 1719 World Map) - Moll's map is on a Mercator. The "Remarkable Tracts" of voyages he draws are rhumb lines.
• S4 (My Maps + Adopt a Ship) - Google My Maps is Web Mercator. Same projection, 307 years later.
• S11 (Piracy as Geography) - chokepoints look the way they do partly because of the projection. Show the same chokepoints on Mollweide for contrast.
• S13 (The Wreck) - the longitude problem made the wreck partly a navigation disaster.

Salem was a privateering hub. During the Revolution, Salem captains held more than 150 privateer commissions from the Continental Congress and the Massachusetts state government. They captured at least 445 British vessels. Hawkes House at Derby Wharf served as a prize warehouse - cargo seized from British ships came in there before going to auction.

This is a hundred years after the Whydah, but it's the same waterfront and the same mechanic: a piece of paper from a government turns "piracy" into "patriotic service." When students walk Derby Wharf on FT1 (Section B), they're walking the same wharf where prize cargo got tallied.

Use in S8 (FT1 prep) and S9 (Who Chose Piracy?). Question for the cohort: was Bellamy a pirate who never had papers, or a privateer whose papers expired?

• America's first National Historic Site
• Derby Wharf — built 1762, extended 1806, nearly half a mile long
• Interprets three eras at the same site: Triangle Trade colonial period · Revolutionary privateering · post-independence Far East trade
• Hawkes House was used as a privateer prize warehouse during the Revolution
• Walking distance from Collins MS - half of our Field Trip 1 rotation (Section A at Real Pirates Salem, Section B here at the Friendship + Derby Wharf, swap mid-day)

Maps directly onto Sessions 5, 7, 11.

• Major collection of early American maritime art + Asian art from the China trade
• Holds the Ward Family Papers and other primary documents on Salem's slave-trade involvement
• Could potentially host a research visit or provide digitized primary sources

Live ship tracking from MarineTraffic.com. The same harbor that ran the triangle trade in 1717 — what's moving through it today?

Pan and zoom to explore. Click any ship for details. Try zooming out to see Boston Harbor, the broader Massachusetts coast, and the North Atlantic shipping lanes.

MarineTraffic.com — live ship tracking

Our main modern-bridge tool. Free tier shows current positions of commercial ships at sea.

• Bellamy's world — central Atlantic
• Salem Harbor
• Wellfleet wreck site (41.891N, 69.957W)
• Suez
• Red Sea / Bab-el-Mandeb
• Panama Canal
• Strait of Malacca
• Cape Cod / wreck site (zoomed out)
• Salem Harbor

Current sources for the modern bridge in S11 and S12. Vetted, ad-light, public-interest. Most are also linked from Cindy Vallar's running modern-piracy resources page, which is updated through 2026.

• IMB Live Piracy Map - International Maritime Bureau Piracy Reporting Centre. Live, continuously updated.
• ReCAAP ISC - Asia regional piracy reporting (Singapore Straits is the 2025 hotspot).
• EUNAVFOR Operation Atalanta - EU naval force off Somalia.
• NATO Shipping Centre - merchant shipping coordination + piracy stats.
• IMO (International Maritime Organization) - UN maritime regulatory body.
• gCaptain - piracy section - the best ongoing news source.
• USNI News - US Naval Institute, strong coverage of military responses.
• Center for International Maritime Security (CIMSEC) - analysis and policy.

Recent incidents to teach with (S11/S12)

• 2024 Ruen rescue (Arabian Sea) - Indian Navy commandos retook the bulk carrier Ruen from Somali pirates in an airborne raid (March 18, 2024). Concrete modern parallel to Bellamy-era boarding tactics, with helicopters instead of cutlasses.
• 2024 Houthi-Somali piracy connection - Houthi attacks on Red Sea shipping created cover for a Somali piracy resurgence after years of decline.
• 2025 Singapore Straits #1 hotspot - the world's busiest chokepoint became the busiest piracy zone, surpassing the Gulf of Guinea and Somalia.
• 2026 Q1 decline - early 2026 numbers show a sharp drop from 2025 peaks. The pattern is cyclical, not a story of progress.

• Real Pirates Salem — our Week 2 field trip destination. Address: 285 Derby Street, Salem, MA 01970 (walking distance from Collins MS).
• Expedition Whydah / Whydah Pirate Museum — the source collection and Kinkor's former research center. Address: 674 MA-28, West Yarmouth, MA 02673 (12,000 sq ft, opened 2016, includes life-size replica and the SeaLab conservation lab).
• Peabody Essex Museum — Ward Family Papers on Salem's slave-trade involvement
• Salem Maritime National Historic Site — walking distance from Collins MS

From "Captain Charles Johnson's" A General History of the Pyrates (London, 1724). Public domain. These are seven years after the Whydah but they set the visual template the public still pictures. Useful as visual primary sources to compare against the documentary record we now have. Authorship note: the "Captain Charles Johnson" pseudonym is now identified as Nathaniel Mist, Jacobite editor of the London Weekly Journal (Bialuschewski 2004; Brooks 2015). The book is half history, half embellishment — Mist altered details substantively between the May 1724 first edition and the December 1724 second edition. Frohock 2015 goes further: reading the GH whole-cloth as a literary work, Frohock argues it operates as double satire — simultaneously upholding the pirates' critique that society is rigged for the rich AND mocking the pirates as common criminals who can't live up to their own claims. The narrator systematically undercuts the "pirate democrat" framing through inserted satirical episodes (the Stroler, the Royal Pirate play, the proposed Maine kingdom in "abject Slavery under the specious Pretense of Liberty"). Bellamy's "free Prince" Beer-speech traces to a literary trope from St. Augustine's City of God (5th c. CE), not to documented 1717 utterance. Treat the engravings — and every quoted speech — as cultural artifacts of how the public was being told to picture pirates in 1724, not as documentary records.

• Cotton Mather, "Instructions to the Living, from the Condition of the Dead" (1717) — the execution sermon, primary source for S15

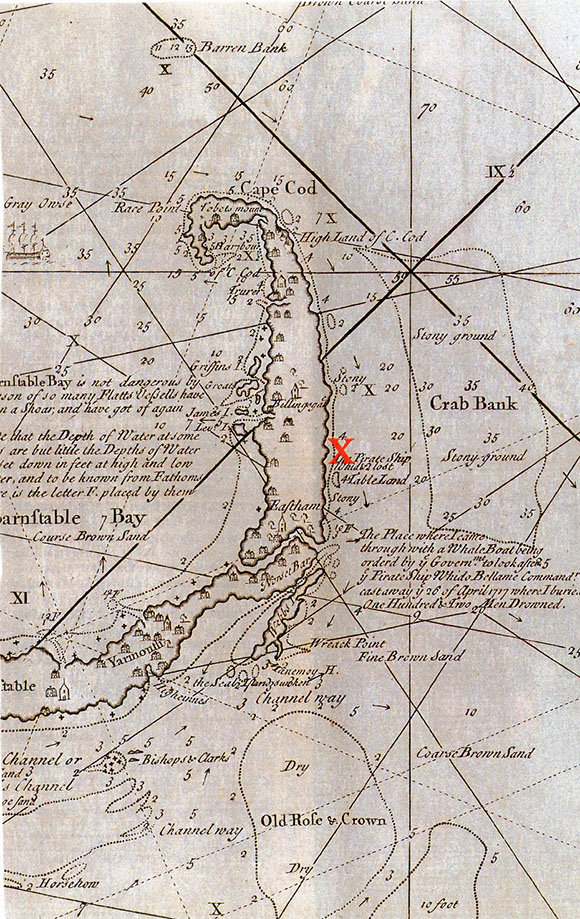

• Cyprian Southack's chart of New England — the 1717 map Clifford used to find the wreck
• Massachusetts Historical Society — End of Piracy — Boston trials context
• Leventhal Map Center — "X" Marks the Spot — Southack and Clifford story

The Whydah and crew

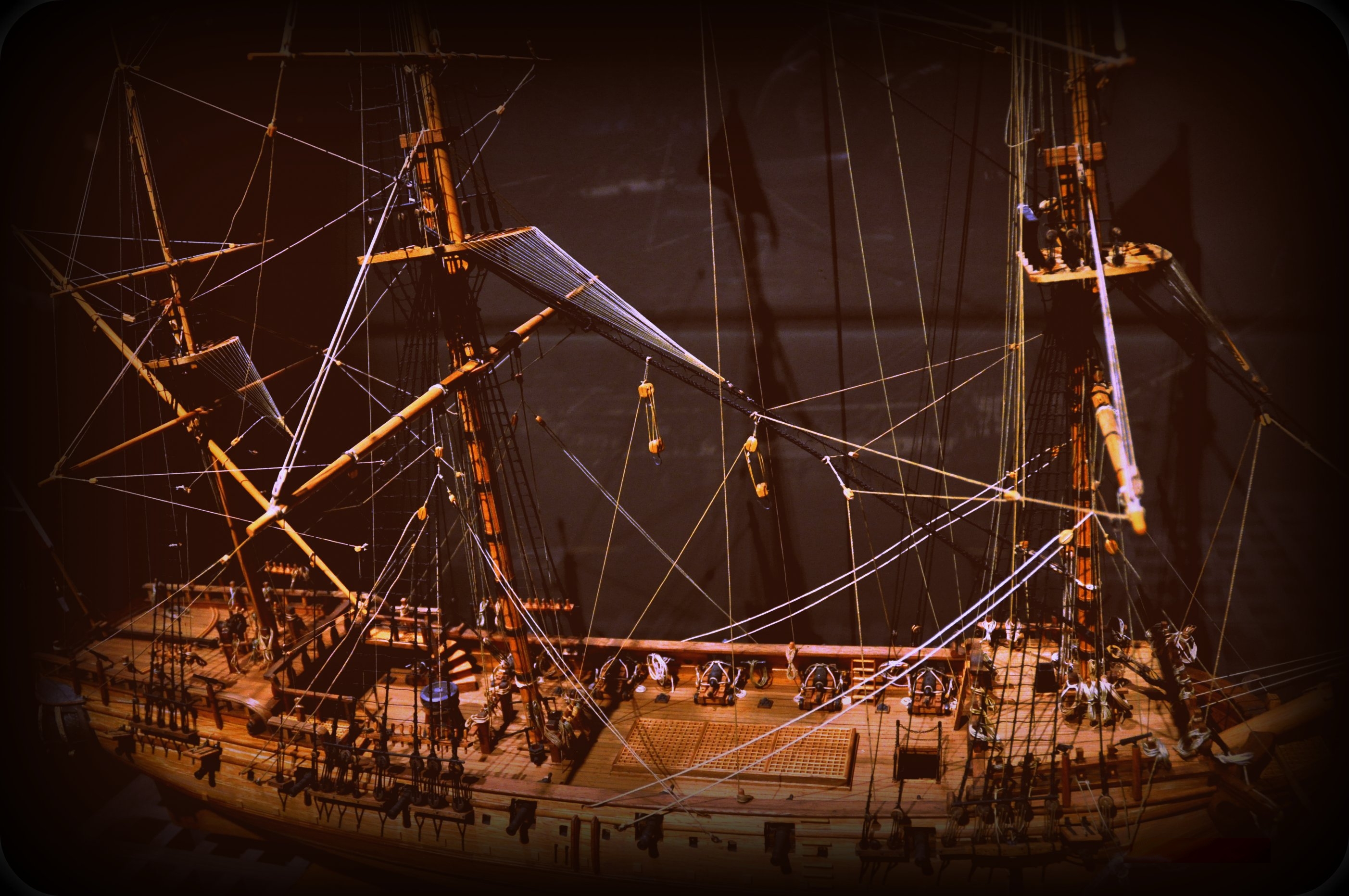

• Whydah Gally
• Samuel Bellamy
• John King (the boy pirate)
• Paulsgrave Williams
• Benjamin Hornigold
• Blackbeard (Edward Teach)
• Flying Gang

Discovery and scholarship

• Barry Clifford
• Ken Kinkor
• Cyprian Southack

Cartography and navigation

• Mercator projection
• John Harrison and the longitude problem
• Trade winds
• Herman Moll
• Pirate code
• Bartholomew Roberts
• A General History of the Pyrates (Johnson 1724)

Atlantic world and slavery

• Golden Age of Piracy
• Triangular trade
• Ouidah (the port the Whydah was named after)
• Kingdom of Whydah
• Nauset / Punonakanit (Wampanoag)

Salem and local

• Salem Maritime National Historical Park

• NPS — Salem's Maritime Economy of Slavery
• NEHS — How the Slave Trade Took Root in New England
• NEHS — Black Sam Bellamy, The Pirate Who Fought Smart
• Streets of Salem — The Dark Side of Old Salem
• Real Pirates Salem — Salem maritime history overview
• Real Pirates Salem — The Trial of the Whydah Pirates
• Pirates & Privateers — Cotton Mather, Preacher to the Pirates
• Pirates & Privateers — John King the Teenage Pirate
• Cindy Vallar, Pirates & Privateers — specialist site that quotes Trial of Eight Persons depositions with page citations, working from Baer's edition. Source for the Davis / Hoof / Dunavan deposition spotlights above.
• Laura Nelson, Whydah Pirates Speak / Peter Cornelius Hoof blog — the leading modern primary-source researcher on Whydah crew biographies. Specific entries on each named crew member with deposition excerpts.

• Marcus Rediker — Villains of All Nations (author's site)
• Review — The Lakefront Historian (source of the Rediker critique we cite)
• H-Net review of Villains of All Nations
• Clifford, Kinkor & Simpson, Real Pirates: The Untold Story of the Whydah (National Geographic, 2007) — library / bookstore
• Colin Woodard, The Republic of Pirates (2007) — library / bookstore
• Marcus Rediker, Between the Devil and the Deep Blue Sea (1987) — on sailor labor and culture

• Golden Age of Piracy — navigational instruments of the era
• Royal Museums Greenwich — Harrison's clocks and the longitude problem
• Science Museum London — Where in the World? The Mathematics of Navigation — institutional educational article on the longitude problem and the lunar-distance method. Pedagogical sweet spot for the math-teacher angle: real-world trigonometry, multi-step computation, and the history of "computers" as women and children doing astronomical hand-calculation. Strong S13 resource.
• Encyclopedia.com — Mercator revolution in nautical navigation
• Journal 18 — Herman Moll's pocket globes and pirate connections
• Transport Geography — 18th-century Atlantic colonial trade pattern
• NOAA Mariners Weather Log — navigation tools

• Slavery and Remembrance — Ouidah
• Slavery and Remembrance — Atlantic Ocean
• British Tars — Mortality at sea
• British Tars — Seamen's wages
• Encyclopedia.com — Seamen wages
• Old Operating Theatre — Life at sea, working conditions

The African end of the Whydah voyage — material culture

• Martha J. Ehrlich, "Early Akan Gold from the Wreck of the Whydah," African Arts 22, no. 4 (Aug 1989): 52–57, 87–88 — keystone peer-reviewed scholarly source on the Akan/Asante origins of the Whydah's gold ornaments. Documents the "scrap gold by weight" finding (clipped, folded, hole-punched ornaments mutilated for the bullion trade) and identifies the Whydah collection as the earliest reliably dated group of Akan gold ornaments anywhere. Solid
• Timothy F. Garrard, Akan Weights and the Gold Trade (Longman, 1980) — foundational reference on the Akan gold trade.
• Timothy F. Garrard, Gold of Africa (Prestel, 1989) — broader museum survey, published the same year as Ehrlich.
• Willem Bosman, A New and Accurate Description of the Coast of Guinea (1705; Cass reprint 1967) — primary 1705 trader's account of the Gold Coast, contemporary with the Whydah era.
• Jean Barbot, A Description of the Coasts of North and South Guinea (London, 1732) — drawings and engravings that are Ehrlich's comparison standard for pre-1874 Akan ornaments.

• First People of Wellfleet, Truro & Eastham (Nauset, Pamet, Punonakanit)
• NPS Cape Cod — Nauset Archaeological District

• MA DESE — current curriculum frameworks
• 2017 ELA framework PDF (find W.8.3, W.8.7, SL.8.4, RI.8.1)
• 2018 History & Social Science framework PDF (identify the Atlantic World topic code)

• Facing History & Ourselves — Middle Passage teaching guide (search facinghistory.org)
• Learning for Justice — Teaching Hard History: American Slavery (learningforjustice.org)
• Smithsonian NMAAHC — teacher resources on the Middle Passage (nmaahc.si.edu)

• Smithsonian Magazine — Six Skeletons Found in Whydah wreck
• National Geographic — Still finding treasure from the Whydah
• National Underwater Marine Agency — The Bad Ship Whydah Gally
• National Maritime Historical Society — Boy Pirate John King
• History News Network — Remains of youngest recorded pirate
• MassMoments — Underwater Explorer Proves Wreck is Whydah
• Smithsonian — The Gentleman Pirate (Stede Bonnet)

What the confidence tiers mean

Key sources by reliability

Most authoritative for Whydah-specific content

• Kenneth Kinkor, Whydah Sourcebook (archival compilation via Expedition Whydah)
• Clifford, Kinkor & Simpson, Real Pirates: The Untold Story of the Whydah from Slave Ship to Pirate Ship (National Geographic, 2007)
• Real Pirates Salem Educator Guide
• Boston Vice-Admiralty Court records (1717)
• Cotton Mather, "Instructions to the Living, from the Condition of the Dead" (1717)
• Cyprian Southack's 1717 report to Governor Shute + his New England chart
• Charles Ewen & Russell Skowronek, Pieces of Eight: More Archaeological History of Piracy (2016) — wreck-site artifact analysis including the Wounded Heart wax seals
• Martha J. Ehrlich, "Early Akan Gold from the Wreck of the Whydah," African Arts 22, no. 4 (1989): 52–57, 87–88 — peer-reviewed Africanist scholarship on the African material recovered from the wreck. The keystone source for the African end of the Whydah voyage. JSTOR
• Elizabeth Donnan, "The New England Slave Trade after the Revolution," The New England Quarterly 3, no. 2 (April 1930): 251–278 — archival tour de force naming Salem ships, merchants, and voyages 1783–1808. Identifies Salem as "the most active of the Massachusetts ports" in the post-Revolutionary slave trade. Critical primary-source work for the Salem-complicity teaching thread.
• Roff Smith, "We're Still Finding Treasure from This 'Golden Age' Pirate Shipwreck," National Geographic, 12 September 2025 — strongest popular-magazine treatment of the Whydah surveyed. Includes Dave Conlin (NPS underwater archaeologist) on slave ships as engineered-fast → why they made excellent pirate ships. Confirms 367 captives loaded / 312 surviving (Field Museum figure, vs. Wikipedia's ~500). Reports up to 50 of Bellamy's crew were of African origin. Hedges responsibly on Maria Hallett (notes the legend; doesn't present as fact) and on the Beer-speech (attributes carefully to the GH).
• JP Mayer, "The People's Pirate: Samuel Bellamy's Role as a Social Bandit in the Golden Age of Piracy" (2016, Brown ARCH 0676) — synthesis paper drawing on Hobsbawm, Rediker, Clifford & Kinkor

Scholarly for the broader context

• Marcus Rediker, Villains of All Nations (2004) — causes of piracy, pirates-as-resistance thesis
• Marcus Rediker, Between the Devil and the Deep Blue Sea (1987) — sailor labor and culture
• Marcus Rediker, The Slave Ship: A Human History (Viking, 2007) — slave-trade-labor dimension that frames the Akan gold cargo in Atlantic context.
• Colin Woodard, The Republic of Pirates (2007) — narrative history of the Golden Age, including the Bellamy–Hornigold–Thache shared milieu.
• Eric Jay Dolin, Black Flags, Blue Waters: The Epic History of America's Most Notorious Pirates (Liveright, 2018) — Marblehead-based popular historian. Covers the colonies-as-pirate-business-partner thesis (Boston, Newport, NY profited from pirate commerce until pirates started attacking colonial ships post-Utrecht). Includes Philip Ashton, the Marblehead fisherman captured by Edward Low in 1722, who escaped and was rescued by a Salem brigantine. Most important Salem/North Shore-friendly synthesis available.
• W. Jeffrey Bolster, Black Jacks: African American Seamen in the Age of Sail (Harvard, 1998) — racial-labor history of the Atlantic, frames John Julian and the Whydah's multinational crew.
• Timothy F. Garrard, Akan Weights and the Gold Trade (Longman, 1980); Gold of Africa (Prestel, 1989) — Africanist references on the Akan gold trade.
• Mark G. Hanna, Pirate Nests and the Rise of the British Empire, 1570–1740 (UNC / Omohundro Institute, 2015), and Piracy in Colonial North America, Oxford Research Encyclopedia of American History (2020). DOI: 10.1093/ACREFORE/9780199329175.013.813 — the major scholarly counter-thesis to Rediker. Where Rediker reads pirates as a working-class proto-revolutionary counter-society resisting colonial elites from below, Hanna argues pirates were enabled, sheltered, and profited from by colonial elites from above (governors, merchants, even ministers). Both readings can be true at once — pirate crews were working-class while their on-shore sponsors were merchant elites — but they emphasize different parts of the same archive. Hanna's killer Bellamy framing: after the Treaty of Utrecht (1713) and the new Piracy Acts, colonial governors stopped tolerating "their" pirates — meaning Bellamy in April 1717 was attacking the very New England coast that, fifteen years earlier, would have welcomed him as a supplier of contraband and silver. The wreck happened on a coast that had turned hostile within his career. Free public-facing version of the argument: Hanna, "A Lot of What Is Known About Pirates Is Not True…" NEH Humanities Winter 2017 (link) — assignable to students.
• George Francis Dow & John Henry Edmonds, The Pirates of the New England Coast 1630–1730 (Marine Research Society, 1923; Dover reprint 1996) — foundational older work by the longtime curator of Salem's Essex Institute. Salem-area focused. Period images from this book are already in the dashboard's pics folder.
• Gregory N. Flemming, At the Point of a Cutlass: The Pirate Capture, Bold Escape, and Lonely Exile of Philip Ashton (ForeEdge, 2015) — book-length treatment of the Marblehead fisherman captured by Edward Low in 1722 (rescued by a Salem brigantine in 1725; see Salem section). Pairs with the Ashton callout; cited in Hanna's bibliography.
• Donald A. Schubert, "Piracy, Riches, and Social Equality: The Wreck of the Whydah off Cape Cod," Historical Journal of Massachusetts, Westfield State (Winter 2006) — the source of the "forty-foot waves" wreck-night detail and one of the few peer-reviewed treatments of the Whydah's social-equality dimension specifically. Cited by the PocketSights / Boston Pirate Trail walking tour.
• Peter Earle, The Pirate Wars (Methuen, 2003) — broader scholarly treatment of state efforts to suppress piracy across centuries.
• Robert Blyth, Buried Treasure: A Pirate Miscellany (Royal Museums Greenwich Publishing) — RMG museum-published popular treatment, useful as institutional curatorial framing.
• Joel H. Baer, ed., British Piracy in the Golden Age: History and Interpretation, 1660–1730 (Pickering & Chatto, 2007), 4 volumes — the modern academic edition of the period's primary sources. Trial of Eight Persons appears at vol. 2, pp. 289–319; Mather's Account of the Behaviour and Last Dying Speeches at vol. 4, pp. 91–92. The page numbers used in the deposition spotlight quotes above come from this edition.
• J. L. Anderson, "Piracy and World History: An Economic Perspective on Maritime Predation," Journal of World History 6, no. 2 (Fall 1995): 175–199 — economic framework for understanding piracy across eras. Key concepts: three types of piracy (parasitic, intrinsic, episodic), Gosse's piracy cycle, protection-cost differentials (Frederic C. Lane), and the Treaty of Utrecht 1713 as the trigger that demobilized privateers and created Bellamy's labor market. Also: piracy clusters at chokepoints — usable directly for S11 (Modern Oceans).
• Shannon Lee Dawdy & Joe Bonni, "Towards a General Theory of Piracy," Anthropological Quarterly 85, no. 3 (Summer 2012): 673–699 — Hobsbawmian anthropological framework treating Golden Age pirates as social bandits. Includes a useful taxonomy table (Pirate · Privateer · Smuggler · Freebooter · Filibuster · Buccaneer · Corsair) and the "pirate heterotopia" concept (Foucault). Connects historical piracy to contemporary intellectual-property debates. Note: dashboard's existing Bellamy-as-social-bandit framing draws on this lineage via Mayer 2016.
• Alessandro Scheffler, "Piracy — Threat or Nuisance?" NATO Defense College Research Paper No. 56 (Feb 2010) — modern policy paper on Somali piracy. Three-factor hotspot model: (1) waterway proximity + (2) unpoliced/failed-state seas + (3) coastal economic deprivation. Same logic as Anderson's "episodic" category. Use for S11 to bridge 1717 and modern chokepoints. Also a contrarian critique of inflated piracy statistics — useful for teaching skepticism about piracy narratives ancient and modern.
• Baylus C. Brooks, "'Born in Jamaica, of Very Creditable Parents' or 'A Bristol Man Born'? Excavating the Real Edward Thache, 'Blackbeard the Pirate,'" North Carolina Historical Review 92, no. 3 (2015): 235–277. JSTOR — methodological critique of General History of the Pyrates (Mist authorship; first vs. second edition alterations) directly portable to the Bellamy chapter; documents the Bellamy–Thache shared-Hornigold context.
• Baylus C. Brooks, Quest for Blackbeard: The True Story of Edward Thache and His World (CreateSpace, 2016) — book-length expansion.
• Richard Frohock, "Satire and Civil Governance in A General History of the Pyrates (1724, 1726)," The Eighteenth Century 56, no. 4 (Winter 2015): 467–483. JSTOR — literary-critical reading of the GH as double satire: voices pirate critique while mocking pirates as common criminals. Traces the Bellamy "free Prince" Beer-speech to a St. Augustine City of God trope (a pirate tells Alexander the Great the only difference between them is scale). Shows the GH's narrator systematically undercuts pirate-democracy claims through inserted episodes (the Stroler; the Royal Pirate play turning to lethal melee; the proposed Maine kingdom in "abject Slavery"). Critiques Rediker, Linebaugh, and Leeson for selectively quoting the GH while omitting Mist's mocking commentary. The strongest peer-reviewed argument that the "Robin Hood pirate" framing is literary construction, not documented behavior.
• Arne Bialuschewski, "Daniel Defoe, Nathaniel Mist, and the General History of the Pyrates," Papers of the Bibliographical Society of America 98 (March 2004): 21–38 — keystone authorship article identifying Mist as "Captain Charles Johnson."
• Arne Bialuschewski, "Blackbeard: The Creation of a Legend," Washington and Jefferson College Review 58 (Nov 2012): 39–57 — companion revisionist piece on how pirate legends got constructed.
• Angus Konstam, Blackbeard: America's Most Notorious Pirate (Wiley, 2006) — more skeptical counterweight to the Brooks revisionist tilt.
• David Cordingly, Under the Black Flag: The Romance and Reality of Life Among the Pirates (Random House, 2006) — foundational general work on Golden Age piracy; uses General History cautiously.

Use with explicit framing

• "Captain Charles Johnson," A General History of the Pyrates (1724) — primary as period artifact, unreliable on specifics; contains fabrication, invented speeches, and substantive differences between the May 1724 first edition and the December 1724 second edition. Now identified as the work of Nathaniel Mist (Bialuschewski 2004; Brooks 2015), Jacobite editor of the Weekly Journal; the older Daniel Defoe attribution is no longer supported. Specify which edition is being cited if the difference matters. The Bellamy "Beer-speech" episode is almost certainly a Mist embellishment following a St. Augustine literary trope (Frohock 2015), not a contemporary 1717 record. Frohock further argues the entire GH operates as double satire — meaning the "pirate democrat / Robin Hood" framing that the book seems to advance is systematically undercut by Mist's own narrator. Read with that frame, not at face value.
• Philip Gosse, The Pirates' Who's Who (1924) — early-20th-century alphabetical biographical reference, full text on Project Gutenberg. Useful for cross-checking dates and names; tertiary, not primary.
• Elizabeth Reynard, The Narrow Land (1934) — folklore, source of "Maria Hallett" name.
• Hildreth Gilman Hawes, The Bellamy Treasure: The Pirates of the "Whydah" in the Gulf of Maine (Augusta Press, 1940) — popular Maine-regional book reviewed in The New England Quarterly 15, no. 1 (March 1942) by William G. Saltonstall as "breezy, undocumented" and a "colorful yarn." Use only for historiography of the Bellamy folk-tradition; do not cite for facts. Source of the "Robinhood of the Seas" branding tradition and the "Maine coves and rivers" treasure legend (the Norumbega / Penobscot careening story is Hawes's invention or a Maine folk embroidery, not a 1717 navigational reality). JSTOR (review)
• Rachel Rueckert, If the Tide Turns (Kensington, 2024) — historical fiction novel about Bellamy and the Whydah, with the Hallett character renamed Maria Brown. Useful as a contemporary fiction reference; cite carefully.
